Model and Spec

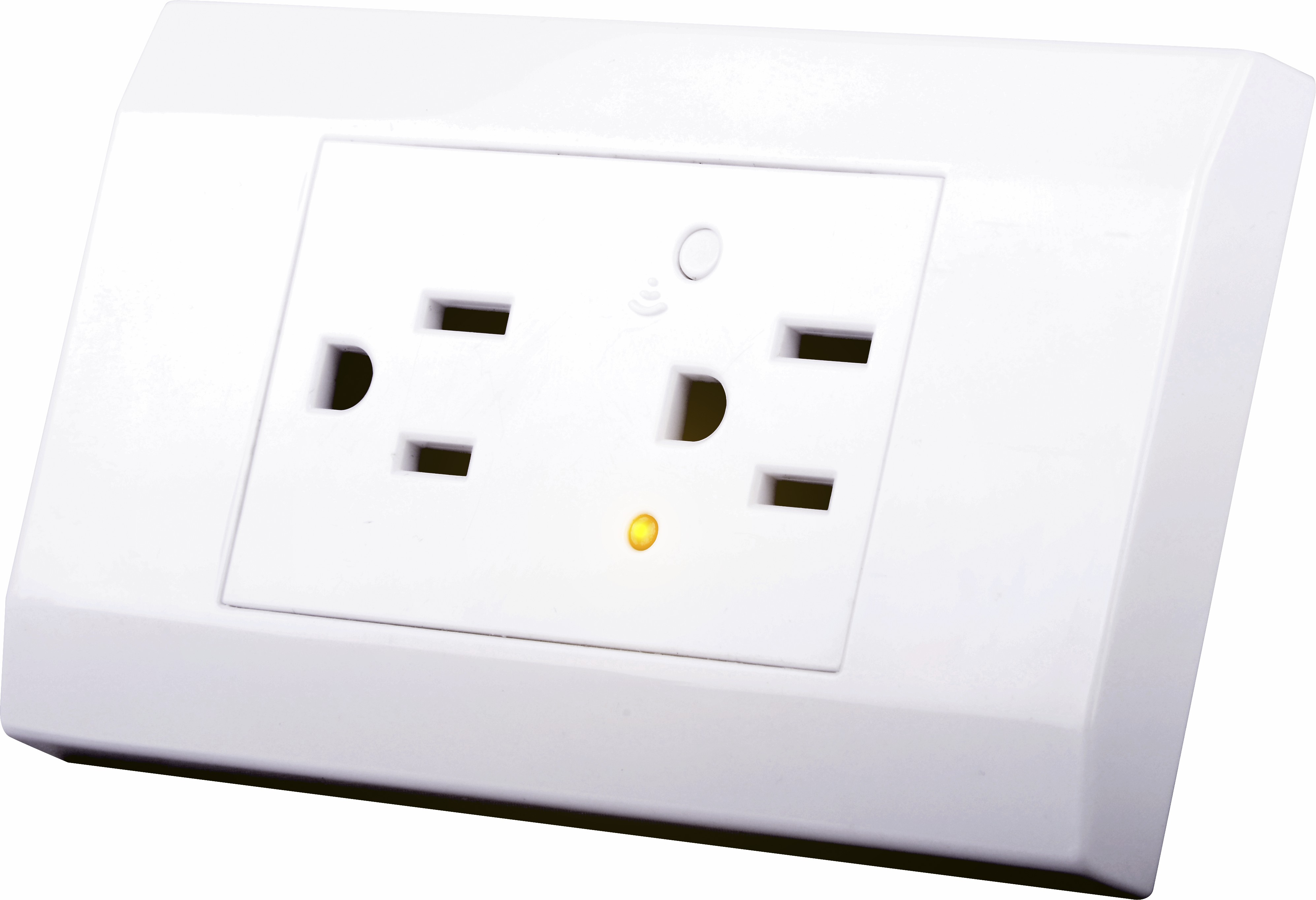

| Model and Spec | IWO-001 |
| Dimensions (mm) | 120*70*43.7 |
| Weight (Without Wall Plate) |
200g |
| Input Voltage (VAC) | 100/240VAC |
| Input Frequency (Hz) | 50-60Hz |
| Input current (A) | 15A/10A |
| AC Maximum Power Load |
15A per Socket (Not Simultaneous)/ 15A Total Combined |
| Wires | Line, Neutral, and Ground |
| Interface | Status LED Setting Button |
| LED | Yellow/Green |
| Wi-Fi | 802.11 b/g/n |
| Relay for Power Remote Control |
V |
| Energy Monitoring | V |
| Stastics for Power Consumpstion |
V |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10 to 95% Noncondensing |
| Shock and Vibaration | -40°C, 2 Hrs/+85°C 2 Hrs, 5 Cycles |
| Safety | UL Listed |
